hammer mill

Hammer mill/Wood Crusher is a machine whose purpose is to shred or crush aggregate material into smaller pieces.

Hammer Mill is suitable for milling raw material like tree branch, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm(diameter). After milled, the output size can reach diameter 3-5mm, which is suitable for further pelletizing.

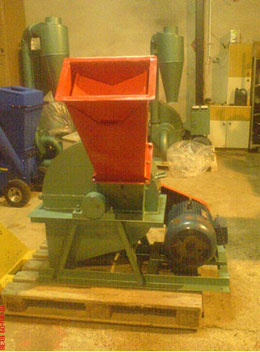

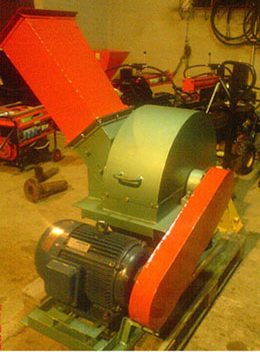

hammer mill hammer mill
Wood Crusher is suitable for crushing raw wood with size less than 200mm (diameter). After milled, the output size can reach diameter 3-5mm, which is suitable for further briquetting.

wood crusher

Introduction of new hammer mill

hammer mill with two cyclone

Recently we have improved the hammer mill, adding another cyclone. Before, every time after packaging, there was raw material leakage when replacing bags, now there is a handle in the middle of the cyclone through which the baiting order of the two cylinders can be adjusted so as to effectively prevent the residual material from leaking.

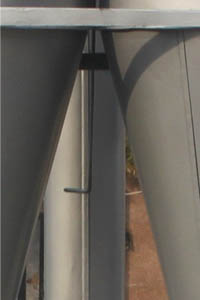

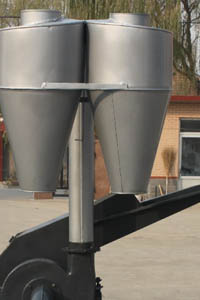

adjust hammer mill adjust new hammer mill
Customers can control the raw materials baiting order themselves through the handle in the middle of the cyclone.
Inner structure of hammer mill
Inner structure of wood crusher Inner structure of wood crusher
The two types of crushers are fitted to the downstream equipments.

Technical Parameters
Model FSJI Wood Crusher FSJII Hammer mill
(For wood) (for tree branch, stalk etc)
Capacity(kg/h) 400-500 500-700
Diameter of Feeding Material ≤ø150-200mm ≤ø35-50mm
Max. Size of Crush Ø5×5mm Ø5×5mm
Motor 11kw 22(for wood)/18.5kw(for straw)
Gross/Net Weight 400/350kg 550/650kg
Overall Dimension (mm) 1250*700 *910 1700*1150*1200
Cyclone (2400*800*800)

Optional:

This kind of hammer mill is more suitable for match a completely line cause of its high working efficiency.
hammer mill for completely line hammermill for completely line
