pellet mill for wood
Our R&D department has a research and testing with the different biomass materials. And we made the improvements on the quality of dies and rollers to handle additional pressure, the pellet press became suitable for making pellet from Cypress, Elm tree, Hickory, Oak, Lignumvitae, Birch, sawdust, straw, stalks and grass etc. Here, we introduce the flat die pellet press for processing hard wood, we call this type is ZLSP series (R-type)Video of how to operate pellet mill to process pine saw dust into pellets
There are two advantages to the wood pellet mill with a rotating roller design. One is that the rotating roller has much longer service life than the traditional design--about 2000 hours. Furthermore wood pellets produced by the rotating roller design are much longer, of up to 3 centimeters or more.
Technical Data
| Model | Power (kw) | Capacity (kg/h) | Weight (NW/GW) | Packing Size (mm) |
|---|---|---|---|---|
| ZLSP-D 150B | 5.5KW (3phase) | 50-100 | 95/110 | 800x450x700 |
| ZLSP-D 200B | 7.5 (3phase) | 80-120 | 200/230 | 1050x480x930 |
| ZLSP-D 230B | 11 (3phase) | 120-200 | 290/320 | 1180x540x1000 |
| ZLSP-D 260B | 15 (3phase) | 160-250 | 320/360 | 1240x540x950 |
| ZLSP-D 300B | 22 (3phase) | 250-400 | 350/380 | 1300x560x1100 |
| ZLSP-D 150C | 5.5 (3phase) | 60-110 | 105/125 | 1000x480x780 |
| ZLSP-D 200C | 7.5 (3phase) | 80-120 | 210x230 | 1050x550x830 |
| ZLSP-D 230C | 11 (3phase) | 120-200 | 290/320 | 1200x560x950 |
| ZLSP-D 260C | 15 (3phase) | 160-250 | 340/370 | 1240x560x1000 |
| ZLSP-D 300C | 22 (3phase) | 250-400 | 425/465 | 1300X620X1100 |
| ZLSP-D 150A | 8 | 50-100 | 180/220 | 100x500x750 |
| ZLSP-D 200A | 15 | 80-120 | 210/240 | 1460x750x900 |
| ZLSP-D 230A | 22 | 120-200 | 280/310 | 1560x850x1100 |
| ZLSP-D 260A | 30 | 160-250 | 330/360 | 1200x500x1070 |
| ZLSP-D 300A | 55 | 250-400 | 410-450 | 1220x600x1000 |
| ZLSP-150Q | 10 | 90-120 | 180-220 | 1000x500x750 |
| ZLSP-D 150P | ≥8 | 50-100 | 90-110 | 900x540x1020 |
| ZLSP-D 200P | ≥15 | 80-120 | 130/150 | 1000x540x1020 |
| ZLSP-D 230P | ≥22 | 120-200 | 175/200 | 1000x540x1020 |
| ZLSP-D 260P | 33 | 160-250 | 235/255 | 1050x540x900 |
| ZLSP-D 300P | 41 | 250-400 | 305/325 | 1100x540x1000 |
| ZLSP-R 200B | 7.5 (3phase) | 80-120 | 215/245 | 950x450x1050 |
| ZLSP-R 300B | 22 (3phase) | 250-350 | 540/575 | 1350x750x1400 |
| ZLSP-R 400B | 30KW (3phase) | 350-450 | 770/810 | 1400x800x1450 |
| ZLSP-R 200A | 15 | 80-120 | 320/350 | 1460x950x1100 |
| ZLSP-R 300A | 41 | 250-350 | 850/890 | 1100x700x2480 |
| ZLSP-R 400A | 55 | 350-450 | 1010/1050 | 1300x800x2600 |

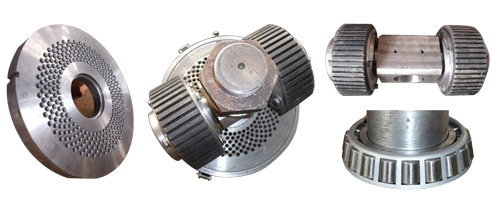

Reference spare parts
Application life of die and roller: No less than 2000 working hours
What are the pellets made from?
Pellets can be made from , , and other farming waste.
Bamboo Pellets
Sawdust Pellets
Mixed Sawdust Pellets

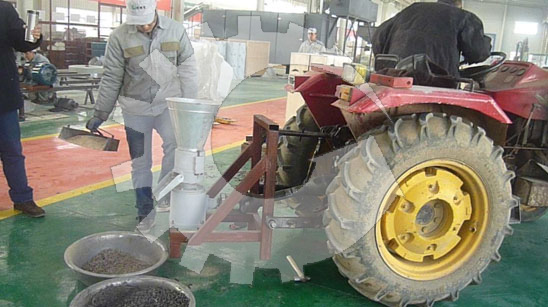

ZLSP series (D-Type) with PTO Connection
Usually on a tractor or truck, a power take-off (PTO can be used to provide power to an attachment or separate machine. Our pellet machine PTO is designed to be easily connected and disconnected. The power take-off (PTO) allows implements to draw energy from the tractor's engine.
The pellet press with PTO is appropriate for a wide application. With wheel added, you can move it flexibly to places where you collect raw material easily, like farm, orchard, livestock farms, etc. The alloy steel made components enable the machine work continuously and stably with little wear and tear.

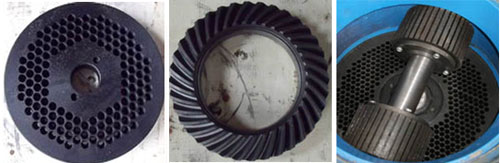

Reference spare parts:

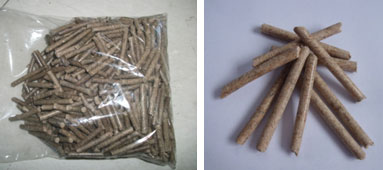

Final products:
